Standard & made-to-measure sizes
20×25, 16×20, 595×595 & cut-to-order

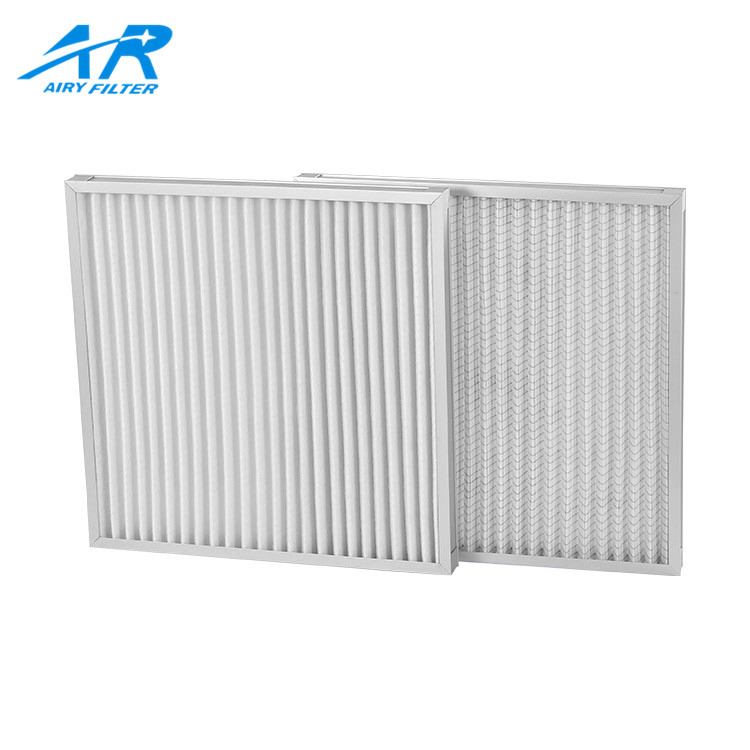

Pannello & Pleated HVAC Filters
Pleated filters and panel pre-filters for AHUs, rooftop units and commercial ventilation — MERV 8 A 13, standard and custom sizes, wholesale and OEM.
- Merv 8, 11 & 13 Grades Available
- 200,000 Pieces Monthly Capacity
- MOQ basso — Da 200 Pezzi
Panel and Pleated Filters for Commercial HVAC
Commercial air handlers go through a lot of panel and pleated filters. We make pleated HVAC filters in MERV 8, 11 E 13, flat pre-filters in cardboard or metal frames, washable mesh panels, and carbon panels where odor control is needed.
Sizes run from 20×25×1 up to 595×595 mm in 1, 2 E 4 inch depths, or we cut to the dimensions on the order. Private-label packaging is also available.
All Panel & Filtri pieghettati
Valutazioni, Standard & Test
| Merv (Ashrae 52.2) | IN 779 | Iso 16890 | Where it works in the system |
|---|---|---|---|
| Merv 8 | G4 | Grossa ≥60% | Pieghettata & panel pre-filters — AHU and rooftop intake stage |
| Merv 11 | M6 | ePM10 60–80% | Upgrade pleats for offices, retail & light commercial |
| Merv 13 | F7 | ePM1 50–65% | Fine pleats for IAQ programs & protection of HEPA stages |
| Merv 5–8 | G2-G4 | Grossa ≥30% – ≥60% | Flat panels & washable mesh — coarse dust, equipment intake |
I riferimenti incrociati alle classi sono approssimazioni accettate dal settore (IN 779 / Iso 16890 / Ashrae 52.2 Merv).
Dimensioni personalizzate & Fornitura OEM
We build to the size and frame on the order. Private-label packaging is also available.
Depths 1″, 2″ & 4″
5-inch & 5–25 mm metric on request
Frame material options
Cartone, alluminio, zincato, stainless or ABS
Media grade to spec
Synthetic, fibra di vetro, polyester or carbon-lined
Etichetta privata & confezione
Il tuo marchio, la nostra produzione
Caricamento dei contenitori ottimizzato
Meno merci per unità
Programma di fornitura programmata
Blocca specifiche e prezzi una volta: pianifichiamo la produzione e il caricamento dei container in base ai tuoi consumi, so your buildings never wait for filters.
In-House Panel and Pleated Filter Production
Panel and pleated filters are cut, pleated and framed in our own factory. Each batch is checked for dimensions and airflow resistance before shipment.
All'interno della nostra fabbrica →10,000 ㎡Fabbrica intelligente, produzione in camera bianca
200,000+Pezzi / ㎡ produzione mensile
17+ anniProduzione di filtrazione dell'aria
3 giorniCampioni gratuiti · Piombo standard da 7 a 10 giorni
Where Our Panel & Filtri pieghettati Lavoro
Commercial HVAC Filtration
Office towers, hotels and malls running pleated filters through air handling units and rooftop systems for tenant air quality.
Cibo & Filtrazione per la lavorazione delle bevande
Processing and packaging plants where pleated pre-filtration protects hygiene-critical zones ahead of finer stages.

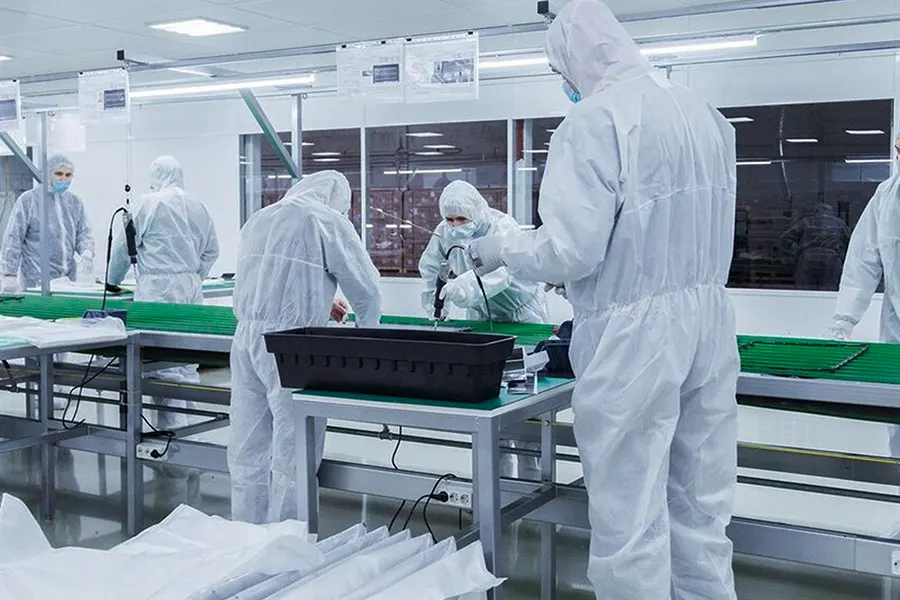

Filtrazione della produzione industriale
Factory ventilation and process air systems where panels capture coarse dust ahead of finer filtration stages.
Produzione Processo
Dalla selezione delle materie prime all'imballaggio e alla spedizione, con controlli di qualità in ogni fase.
Selezione delle materie prime
Lavorazione della fibra & Miscelazione
Formazione non tessuta & Laminazione
Taglio & Modellare
Ispezione di qualità & Test
Confezione & Spedizione
FAQ
Merv 8 vs MERV 11 vs MERV 13 — which pleated filter do I need?
Merv 8 (≈G4) is the standard pre-filtration grade for AHU and rooftop intakes. Merv 11 (≈M6) adds finer particle capture for occupied commercial spaces, e Merv 13 (≈F7) captures fine particles for indoor-air-quality programs and for protecting downstream HEPA stages. All three run in the same face sizes and depths, so upgrading is usually a straight swap — send us your operating conditions and we'll recommend the grade.
Panel filter vs pleated filter — what's the difference?
A flat panel filter is the economical choice for coarse dust at low resistance. Pleating the media multiplies the filtration surface inside the same frame, which raises dust holding capacity and extends service life — that is why pleated filters dominate commercial HVAC. Washable metal and nylon mesh panels cover positions where filters are rinsed and reused instead of replaced.
How often should pleated HVAC filters be replaced?
Watch the pressure drop across the filter rather than the calendar — replacement is due when resistance reaches the system's rated final value. Loading varies with environment and runtime, so for steady consumption we help you set a rotation; most distributors and facility teams move to a monthly supply program.
Do you make washable panel filters?
Yes — washable metal mesh filters, nylon mesh filters and washable pleated pre-filters, with frames in aluminum, galvanized or stainless steel. They suit coarse-dust positions where rinse-and-reuse beats disposable replacement.
What is your MOQ and lead time for wholesale orders?
Moq da 200 pezzi. I campioni gratuiti vengono spediti 3 giorni; ordini standard in 7–10 giorni lavorativi; ordini all'ingrosso o personalizzati in 15-20 giorni, con canale verde per sostituzioni urgenti.
Can you manufacture custom sizes or private-label filters?
Entrambi. We build standard US and metric sizes — 20×25×1 through 5-inch depths, 595×595 metric — plus made-to-measure dimensions, and ship under your brand with private-label packaging and logo printing. Send your size list for a like-for-like quote.
