Rolls up to 2.1 m wide
2.1×20 m, 2.0×21 m, 1.5×20 m, 1.0×20 m & กำหนดเอง

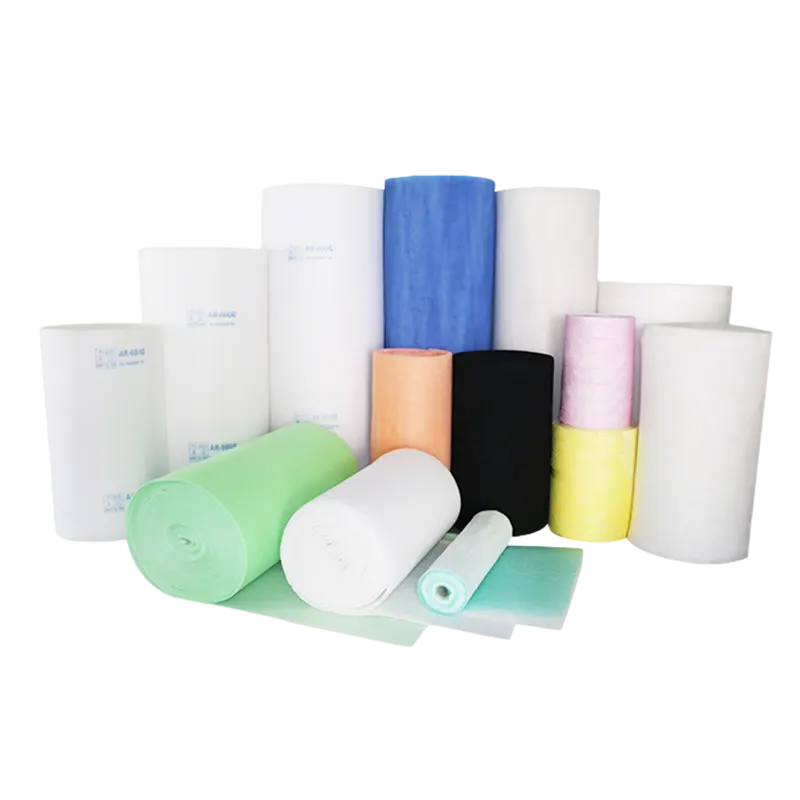

Air Filter Media Rolls
กรองล่วงหน้า, เพดาน, paint stop, high-temperature and activated carbon media — full rolls, slit widths or cut-to-size for converters, OEMs and distributors.
- 200,000 ㎡ Monthly Media Capacity
- Roll Widths Up To 2.1 ม
- Low MOQ — From 20 ม้วน
Filter Media Rolls for HVAC and Spray Booth
These are the rolls that go into finished filters — synthetic pre and coarse media, blue-white inlet media, needle-punched and flame-retardant grades, F5 ceiling diffusion, fiberglass paint stop, plus high-temperature and activated carbon media.
We supply full rolls up to 2.1 m wide, slit widths, or cut pieces, with grammage and thickness matched to the spec. The same filter media is also used in our own filter production lines.
Media Specifications & การทดสอบ
| Media Type | Typical Grade | Key Spec | Standard Roll Sizes |
|---|---|---|---|
| Synthetic pre / coarse media | G2–G4 · MERV 5–8 | Grammage & thickness to order | 2.1×20 m · 2.0×21 m · 1.5×20 m · 1.0×20 m |
| Ceiling diffusion media | F5 · MERV 5 | 22 mm thickness | 2.0×21 m · 1.6×21 m |
| Fiberglass paint stop media | G3/G4 · MERV 5–8 | 60–100 mm progressive density | 0.8–2.0 m widths × 20 ม |
| High-temp fiberglass media | G2–G4 | Rated up to 350 องศาเซลเซียส | Widths to order |
| High-temp synthetic media | G2–G4 | Rated up to 240 องศาเซลเซียส | Widths to order |
| DPA paint pockets media | G4 | Deep-loading exhaust media | Roll form for self-converting |
| Activated carbon media | - | Custom carbon content & ความหนา | Roll form, widths to order |
Values are typical manufacturing ranges (ใน 779 / อัชรา 52.2 เมิร์ฟ) — grammage, ความหนา, width and length are confirmed per order.
Custom Sizes & OEM Supply
We cut and pack filter media to your specifications, including width, grammage and thickness. Private-label OEM rolls are also available.
Slitting & cut-to-size
Slit rolls, pads and sheets to your dimensions
Grammage & thickness to spec
Media weight set and confirmed per order
High-temp & flame-retardant
240–350 °C ratings, FR synthetic rolls
Private label & บรรจุภัณฑ์
Your brand, our production
Container loading optimized
Lower freight per unit
Scheduled Supply Program
Lock specifications and pricing once — we schedule production and container loading around your consumption, so your lines never wait for media.
In-House Filter Media Production
Filter media is formed, laminated and slit in our own factory. Each batch is checked for thickness, grammage and fiber uniformity before shipment.
Inside Our Factory →10,000 ㎡Smart factory, cleanroom production
200,000+Pieces / ㎡ monthly output
17+ ปีAir filtration manufacturing
3 วันFree samples · 7–10 day standard lead
Where Our Filter Media Works
Spray Booth Filtration
Ceiling diffusion, paint stop and DPA exhaust media in roll form — the same rolls our own booth filters are converted from.
Commercial HVAC Filtration
Pre-filter and coarse media rolls for converters and distributors serving offices, hotels and commercial buildings.
Industrial Manufacturing Filtration
Needle-punched, flame-retardant and high-temperature media for plants running continuous ventilation and process exhaust.
การผลิต กระบวนการ
From raw material selection to packaging and shipment, with quality checks at each stage.
การเลือกวัตถุดิบ
การแปรรูปไฟเบอร์ & การผสม
การก่อตัวนอนวูฟเวน & การเคลือบ
การตัด & การสร้างรูปร่าง
การตรวจสอบคุณภาพ & การทดสอบ
การบรรจุหีบห่อ & การจัดส่ง
คำถามที่พบบ่อย
What types of air filter media do you manufacture?
Synthetic pre and coarse media, blue-white air-inlet media, needle-punched media, flame-retardant rolls, F5 ceiling diffusion media, fiberglass paint stop, high-temperature media (fiberglass to 350 องศาเซลเซียส, synthetic to 240 องศาเซลเซียส) and activated carbon media — all produced in-house as rolls, with slitting and cut-to-size available.
Do you supply fiberglass filter media?
Yes — progressive-density fiberglass paint stop media in 60–100 mm thickness for booth floors, and high-temperature fiberglass media rated up to 350 °C for bake and curing environments. Both ship as full rolls in standard or custom widths.
What are your standard roll sizes?
Common sizes are 2.1×20 m, 2.0×21 m, 1.5×20 m and 1.0×20 m. Ceiling diffusion media ships in 2.0×21 m and 1.6×21 m, and paint stop rolls run 0.8–2.0 m wide. Non-standard widths and lengths are produced to order.
Can your media handle high-temperature environments?
Yes — synthetic high-temperature media rated up to 240 °C and fiberglass media rated up to 350 องศาเซลเซียส, used in bake and curing booths and other hot-air processes.
What is your MOQ and lead time?
moq จาก 20 rolls or 200 pieces. Free samples ship in 3 วัน; standard orders in 7–10 working days; bulk or custom orders in 15–20 days, with a green channel for urgent replacements.
Do you offer private-label or OEM roll supply?
Yes — OEM rolls to your grammage, dimensions and packaging, with private-label printing and third-party inspection on request. Many customers convert our media into filters sold under their own brand.
