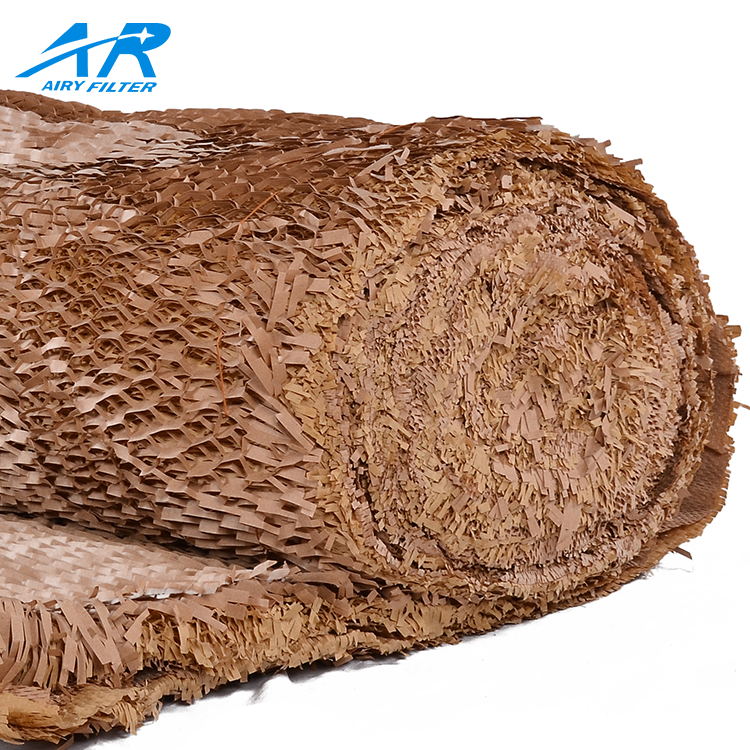

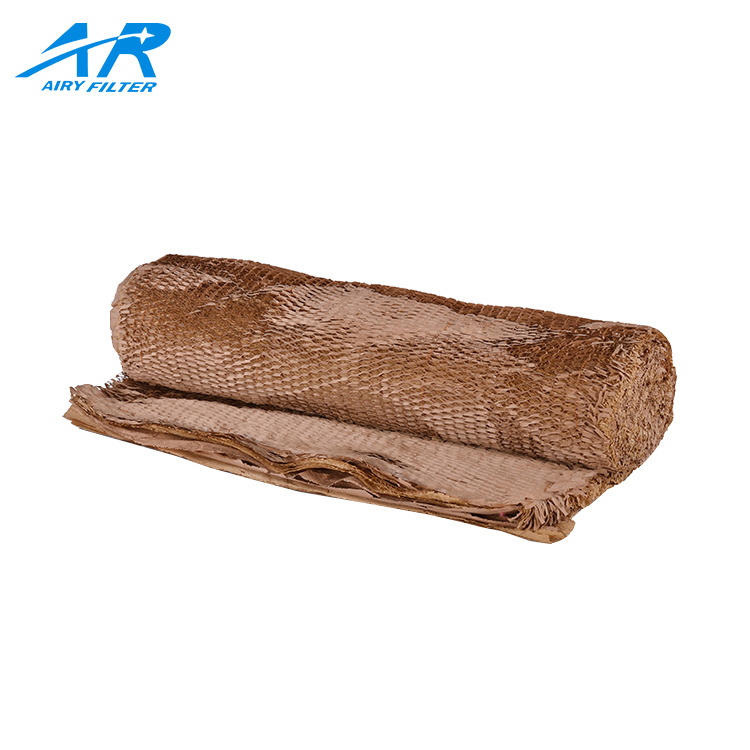

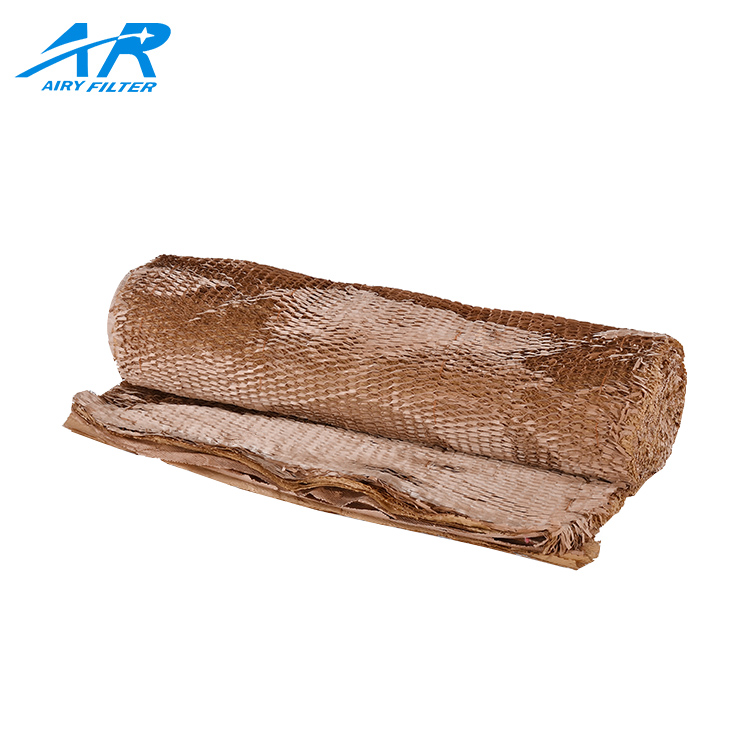

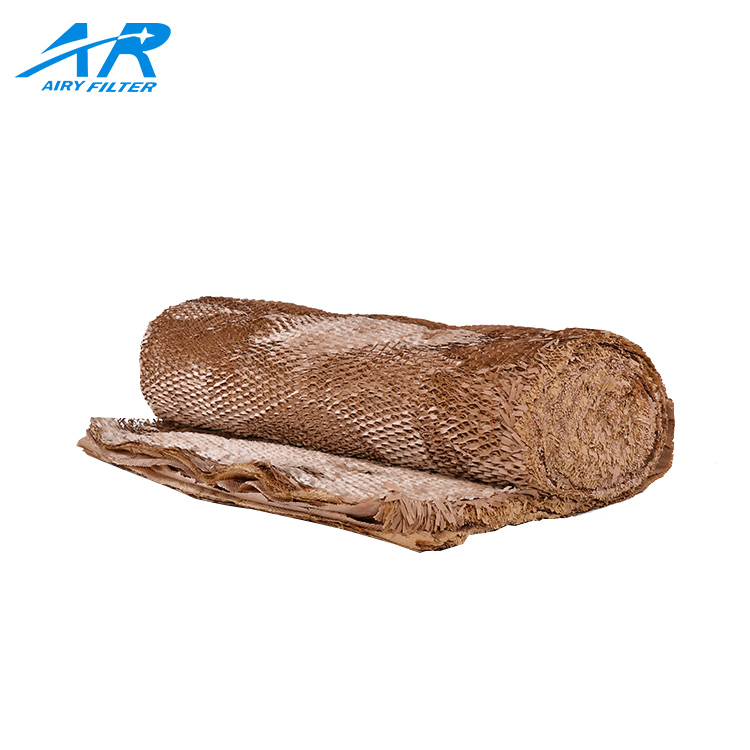

Columbus Filter/Over Spray Filter/Multi-layer Paint Filter Paper

Descripción general del producto:

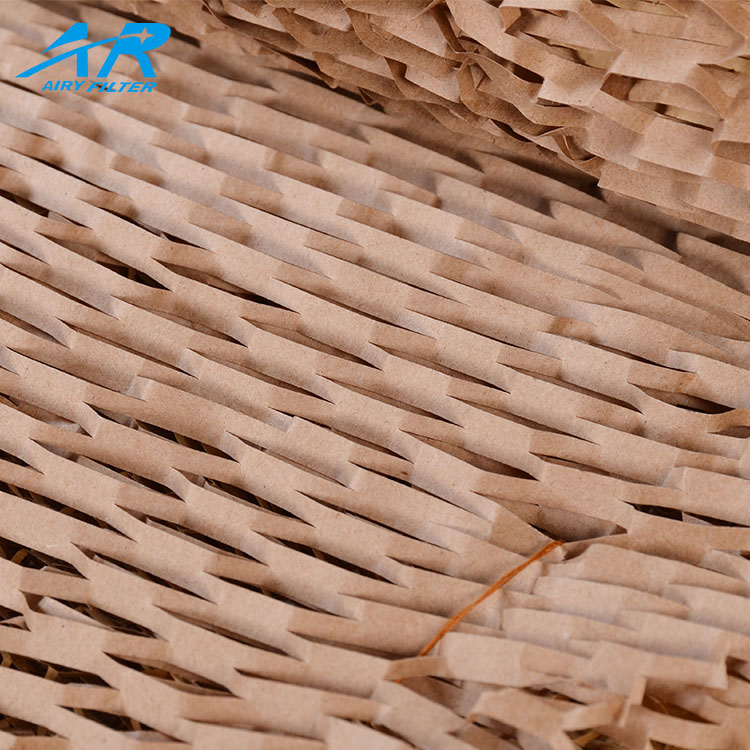

Special filter materials for dry paint spraying systems and paint shops. Primarily installed at the exhaust end of dry spray booths, typically fitted into the metal frames of side-draft exhaust walls. It serves as a more eco-friendly and high-efficiency dry filtration alternative to traditional fiberglass floor filters. Features Depth Filtration & High Holding Capacity: Features a “coarse-to-fine” layered design where larger particles are trapped by the front layers and finer ones by the rear. Its dust-holding capacity is far superior to single-layer paper, preventing premature surface clogging. Constant Airflow: The paper structure maintains excellent breathability even after capturing paint, ensuring long-term airflow stability within the booth and reducing overspray bounce-back. 100% recyclable or easily incinerated. It is completely free of fiberglass, non-irritating to workers’ skin, and represents a safer, more sustainable consumable for modern workshops.

Características clave:

● Multi-layer kraft paper

● Temperature resistance ≤80℃

● Temp Short Peak ≤100℃

● Resistencia a la humedad (humedad relativa) ≤80%RH

Aplicaciones típicas:

Pintura industrial & Tratamiento superficial

Solicitar una cotización

Parámetros técnicos del producto

Modelo	Tamaño estándar	Material	Layers	Rated	I.N.P	Paint mist purification rate
				air velocity	(Pensilvania)
				(EM)
AR-666	0.5M x0.5 M/ 0.5M x10 M/ 1M x10 M	Non-Flame retardant fibers	9	0.6-1EM	<20Pensilvania	<96%
AR-6663		Non-Flame retardant fibers	5	0.6-1EM	<20Pensilvania	<96%
AR-6664		Non-Flame retardant fibers	6~9	0.6-1EM	<20Pensilvania	<96%
AR-767		Flame retardant fibers	9	0.6-1EM	<20Pensilvania	<96%
Nota: Otra especificación se puede personalizar de acuerdo con los requisitos ：500500mm，600600mm，800*800mm.
